LiFePO4

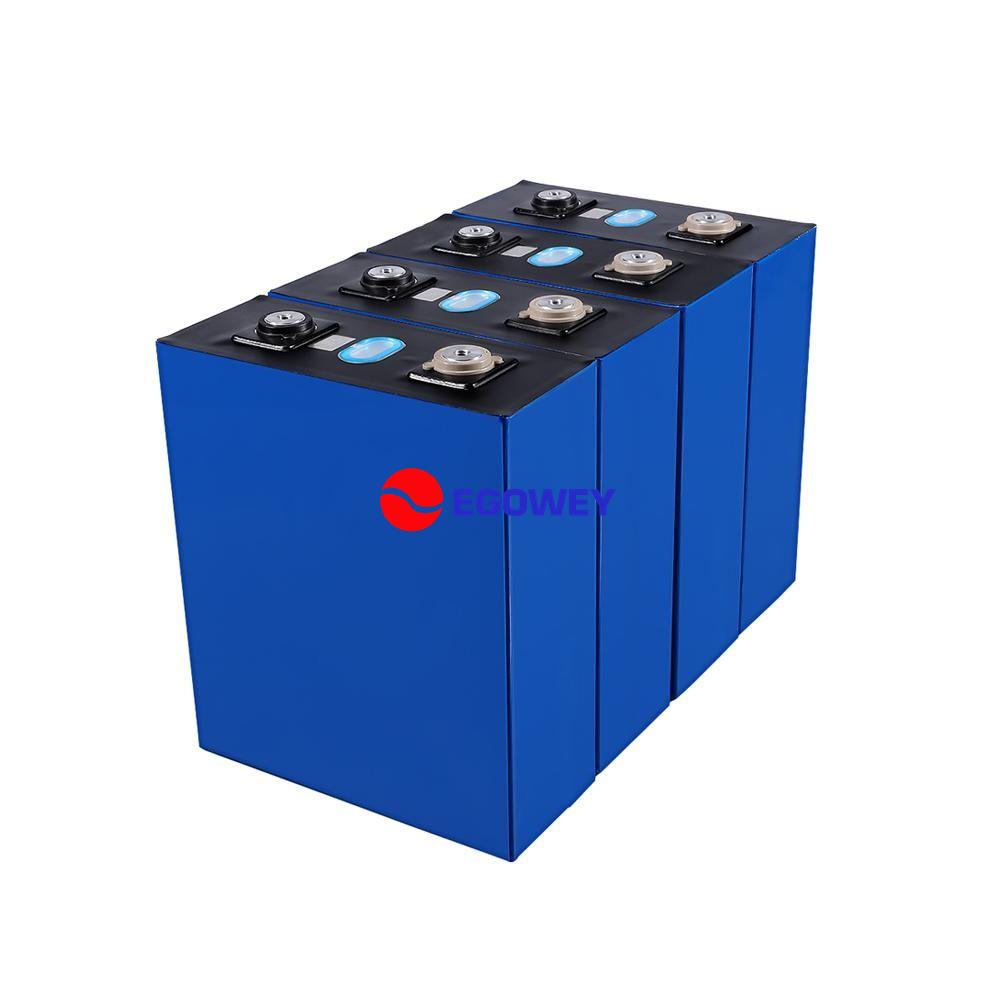

3.2V 240Ah LiFePO4 Battery Cell

3.2V 240Ah LiFePO4 Battery Cell
Product description: 3.2V 240Ah LiFePO4 Battery Cell

Product Description

LFP 6LH3L7 3.2V 240AH LiFePO4 Battery Prismatic Cell

Capacity: 240Ah

Voltage nominal: 3.2V

Chemistry: LiFePO4 (lithium ion phosphate)
Operating Voltage:2.5V~3.65V
Internal Resistance:<=0.15mΩ

Dimensions: 71.3*173.9*207mm

Weight: 5.1Kg±10g

240Ah LFP cells can meet the needs of high-energy density and long distance travel, as well as safety and reliability. It has been widely applied to battery electroc vehicles(BEV), plug-in hybrid electric vehicels(PHEV), hybrid electric vehicles and energy storage systems.

Features:

1- prismatic aluminum shell lifepo4 cells
2- Support continuous discharge rate of 2C and charge rate of 1C
3- good cell consistency
4- widely applied for special electric vehicles, energy storage and telecommunication, etc
5- long cycle of 3000+ cycles

Item	Parameters
Nominal Capacity	240Ah
Nominal Voltage	3.2V
Internal Resistance	≤0.15mΩ
Standard Charge Current	120A
Charge Voltage	3.65V
Discharge Cut-off Voltage	2.5V
Standard Discharge Current	120A
Max. Continuous Discharge Current	240A
Weight	5.1Kg±0.2kg
Operating Temperature	Charge	0~+60℃
	Discharge	-30~+60℃
Storage Temperature	≤1 month	-20~+45℃
	≥6 months	-20~+35℃
Dimensions	71.3173.9207mm
