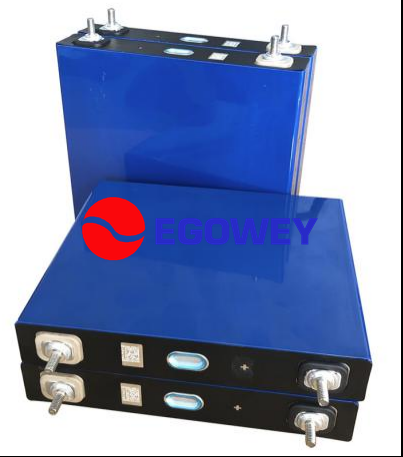

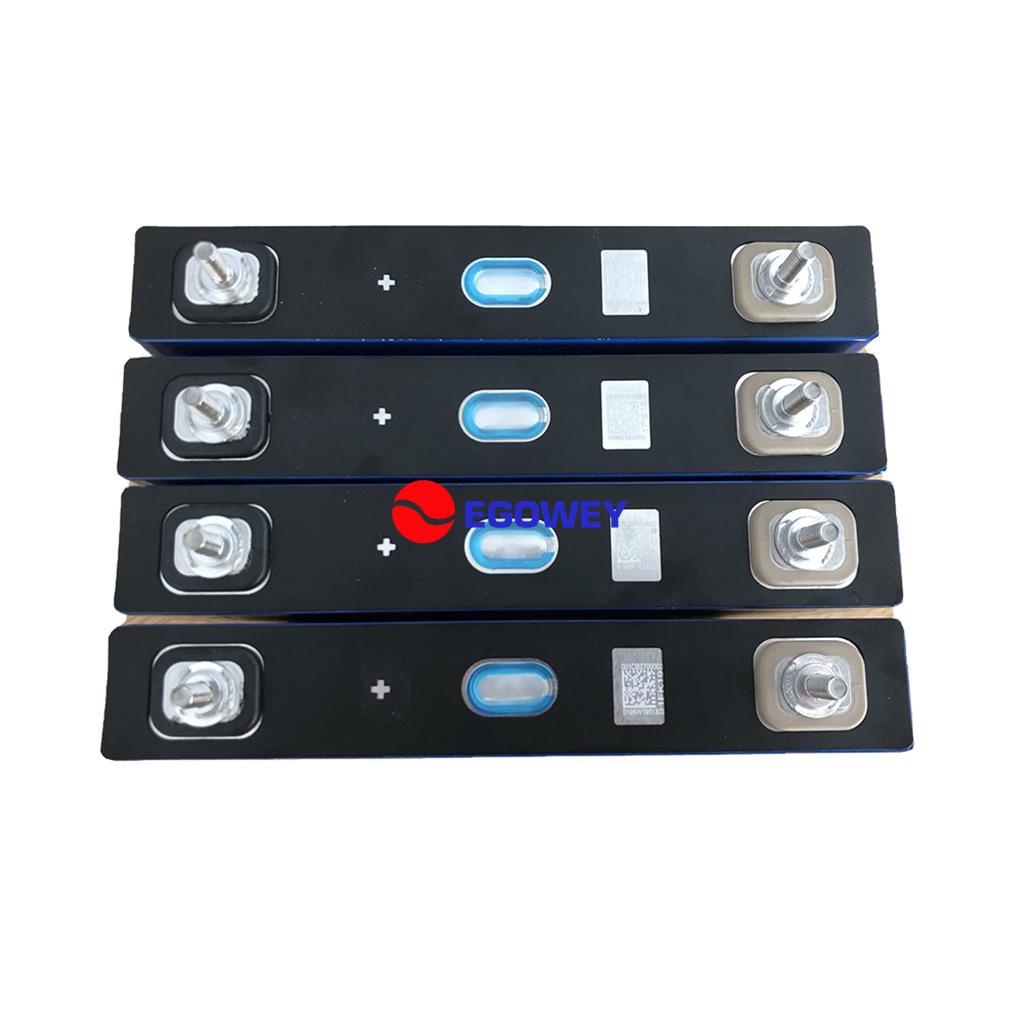

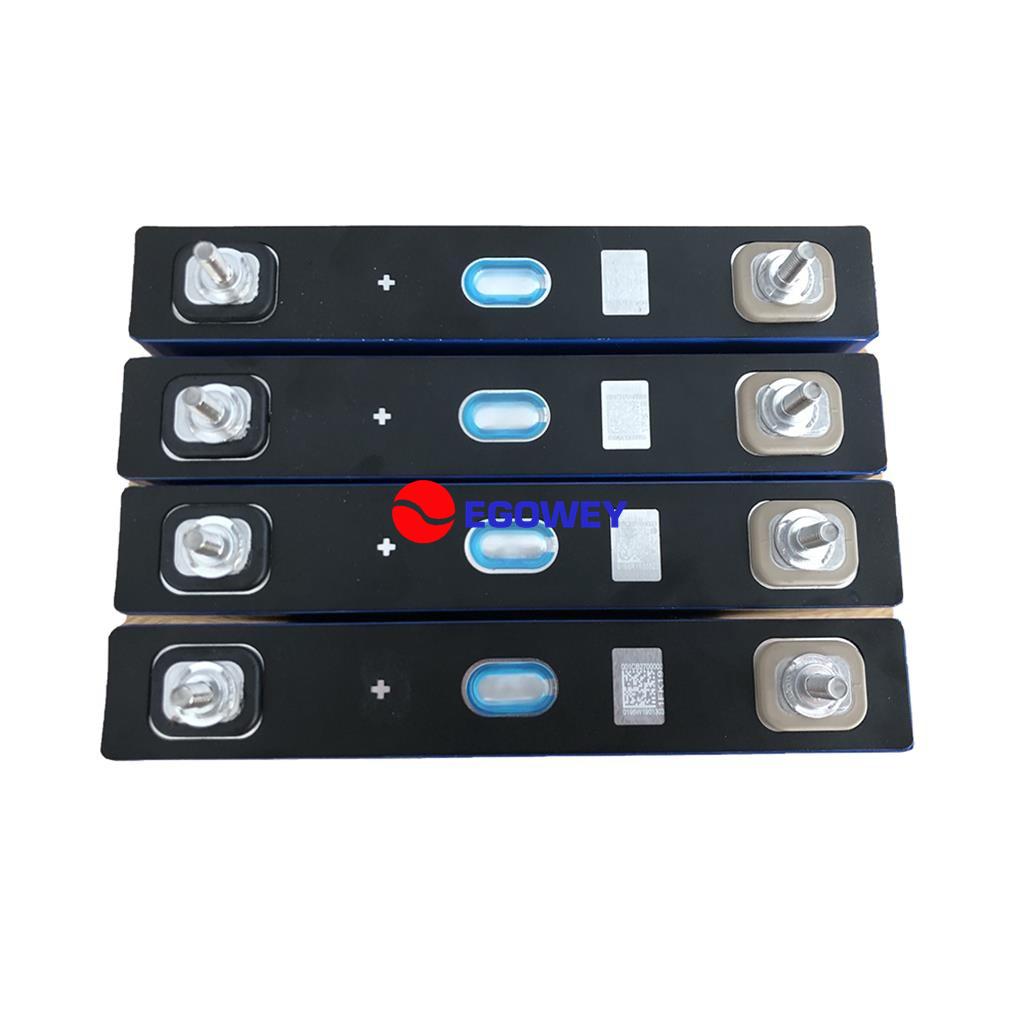

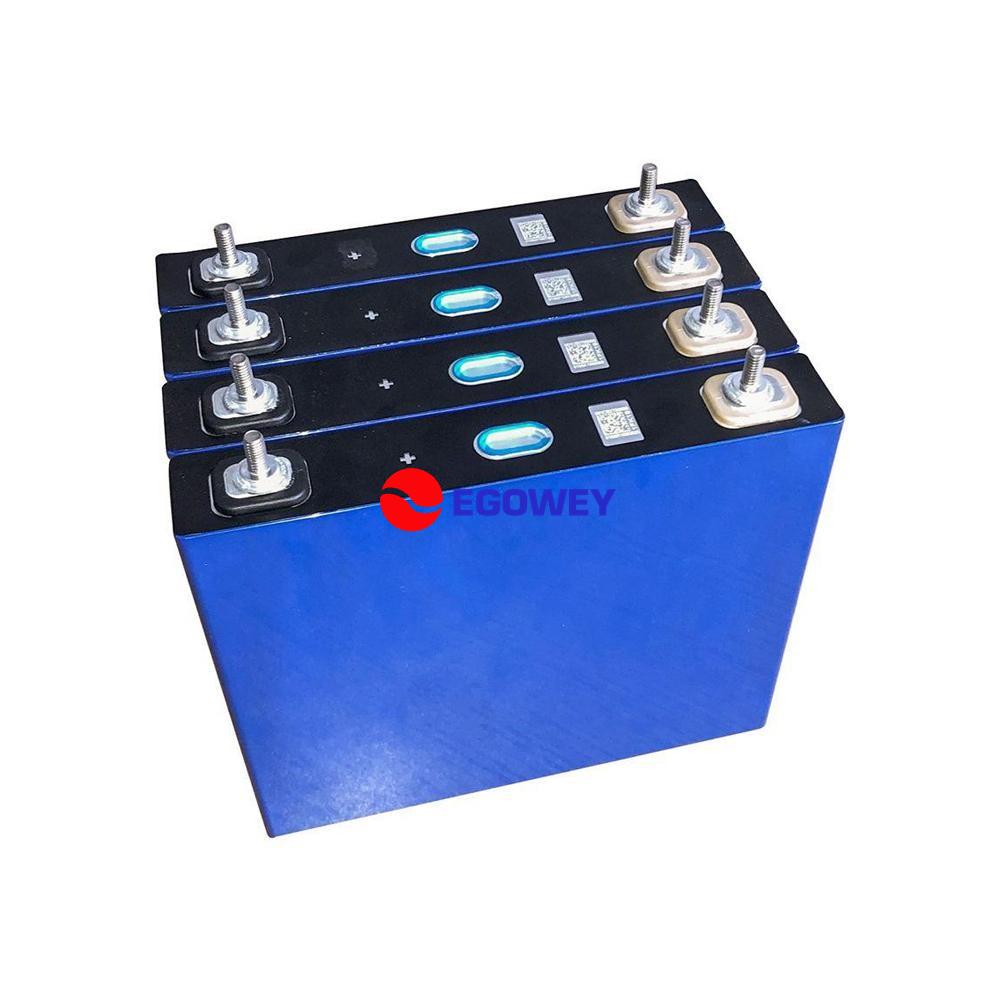

3.2V 100Ah LiFePO4 Battery Cell

Nominal voltage

3.2V

Typical capacity

100Ah

Operating voltage

2.5~3.65V

Impedance (1KHz)

0.39±0.05mΩ

Shipping capacity

40±1Ah

Residual capacity

≤3.5%

Operating temperature range

Charging: 0~55℃,

Discharging: -30~55℃

Storage temperature

-30~60℃

Standard charge   current

0.5C

Max. continuous charge current

1C

Standard discharge   current

0.5C

Maximum discharge current (continuous)

1C

Typical dimension

200*172.2*33.22mm

Weight

2.27±0.30Kg
