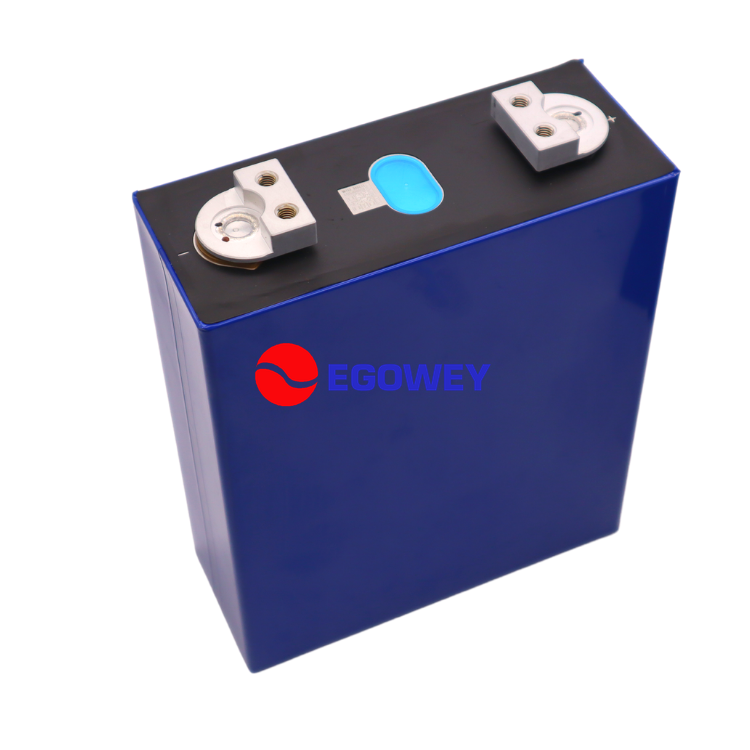

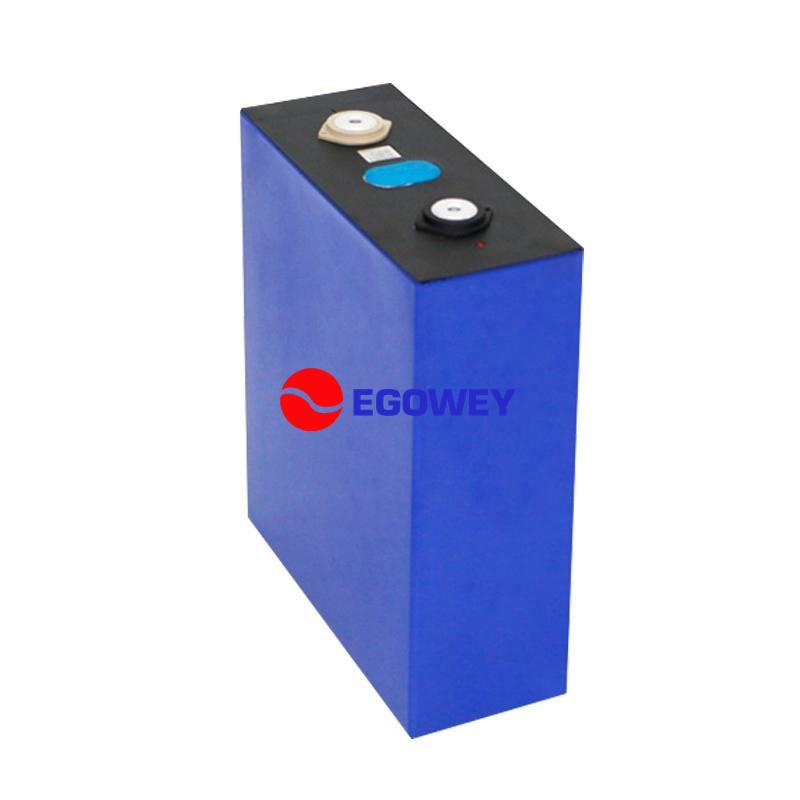

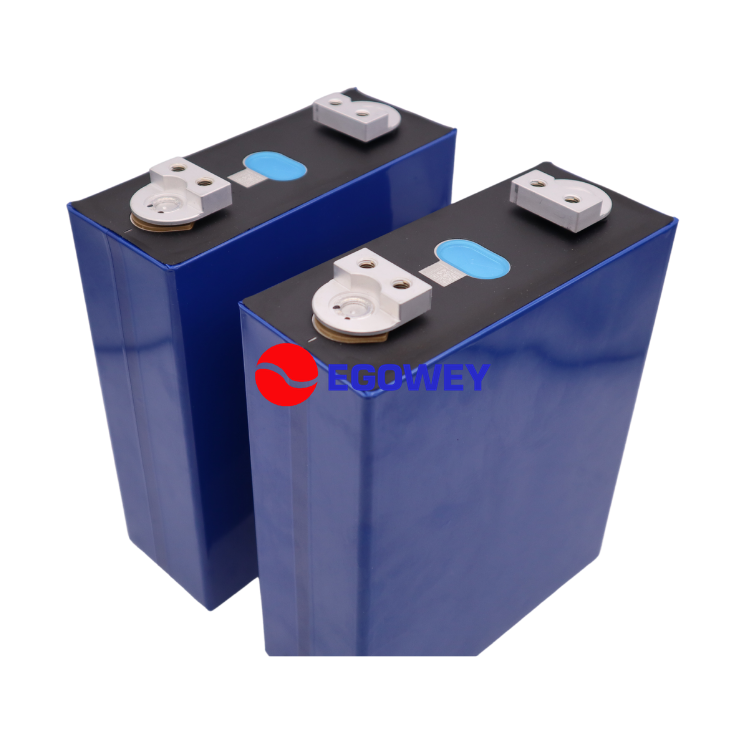

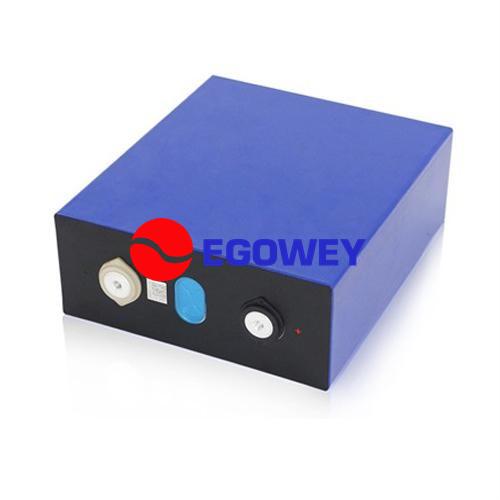

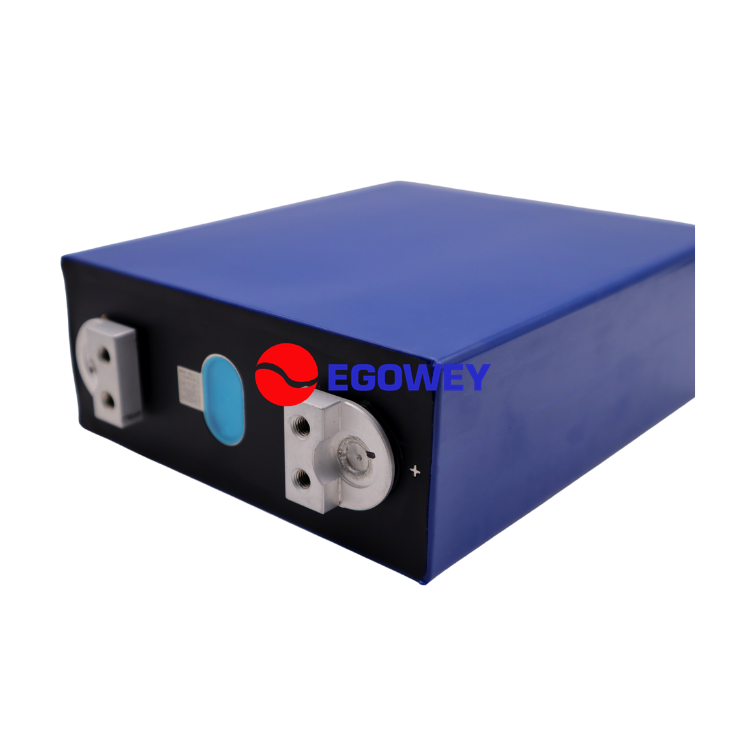

LF280 3.2V 280Ah LiFePO4 Battery for RV solar system storage

Nominal Voltage:3.2V
Nominal capacity:280Ah
Working voltage:2.5V~3.65V
AC impedance resistance:≤0.25mΩ
Dimension:173.6*72*204.8mm

Features of LF280 3.2V LiFePO4 Battery 280ah

Remark:

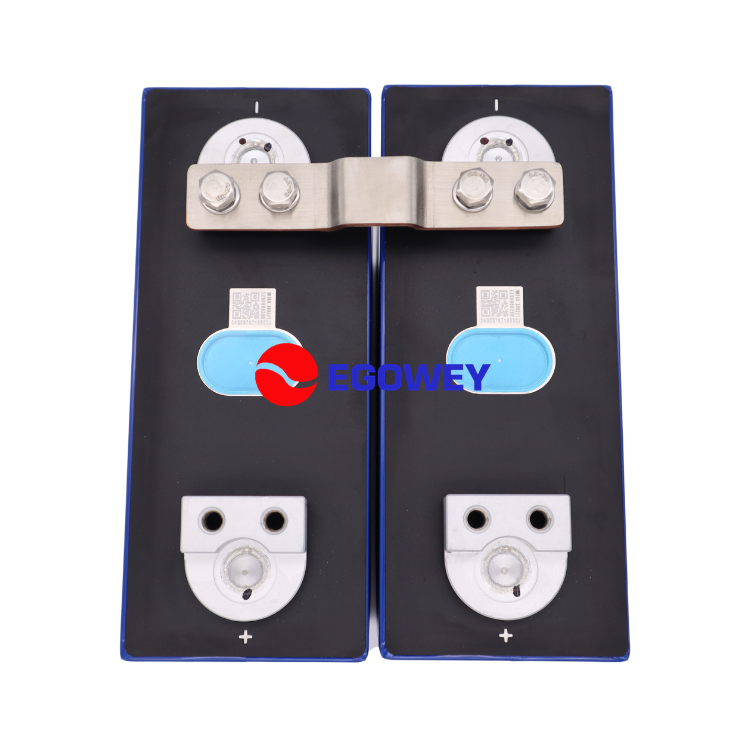

The pole is a double aluminum pole structure. The internal screw with size M6 is used in the poles.
The anti-torsion of pole is 8Nm.
The torsion should be less than 8N m when used. The effective thread hole depth is 6mm.

Note: now we upgrade to LF280K with more than 6000 cycles and M6 threaded hole: LF280K

LF280K with m6 threaded hole

Attentions

For safety usage, please be careful on below：

Warning!

1. Do not immerse the battery in water and keep it dry when not using；

2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions；

3. Charge with specified charge according to charging requirement；

4. Do not reverse the positive (+) and negative (-) terminals；

5. Do not put the battery into a fire or apply direct heat to it；

6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals；

7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc；

8. Do not knock, throw, tread, bend, etc；

9. Do not directly solder the battery terminals；

10. Do not pierce the battery casing with a nail or other sharp object.




 LiFePO4 battery cell Models
