LiFePO4

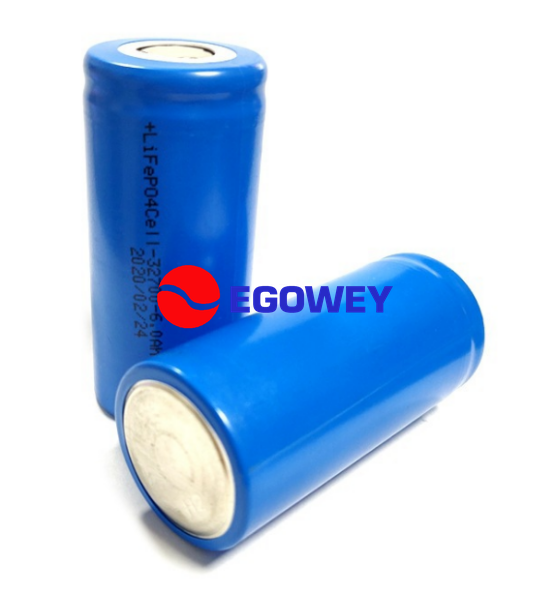

32700 6000mAh lithium Battery Cell Cylindrical Battery Cell

32700 6Ah lithium Battery Cell Cylindrical Battery Cell
Product description: 32700 6000mAh lithium Battery Cell Cylindrical Battery Cell

Product Classification

Cylindrical Rechargeable Lithium-ion Cell

Model Name

LiFePO4-32700- 6.0Ah

Benefits

Sturdy and pressure resistant steel envelope

High capacity

Excellent cycle life

Excellent high and low temperature performance

Steady output voltage

Low self-discharge

Double safety protection

With outstanding high level of vibrations and shocks

Main Application

Electric two-wheeled vehicle, three-wheeled vehicle,

four-wheeled low-speed vehicle

UPS

Storage energy

Nominal Specification

Item		Condition/ Note	Specification
Norminal Capacity		1C discharge capacity	6.0Ah
AC Impedance		At AC 1000 Hz	8mΩ
Nominal Voltage			3.2V
Cell Size		Cell Diameter	32.2±0.3 mm Max. 32.5 mm
Cell Size		Cell Height	70.5+0.4/-0.3 mm Max. 70.8mm
Cell Weight			140± 5 g
End-of-charge Voltage		CC Mode	3.65V
End-of-charge Current		CV Mode	0.3A
Charging Method		Standard Charging	≤1 C at CC/CV
End-of-discharge Voltage		CC Mode	2.0V
Max continuous Discharging Current			18A
Max Pulse Discharging Current			60A
Cycle Life		1 C/ 100 % DOD	≥2000 cycles
Operating Temperature Range	Charging Temperature		0~60 °C
	Discharging Temperature		-20~ 60°C
			-20~ 45°C
